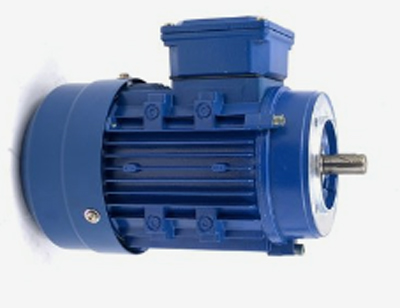

產品概述
Y-H系列是全封閉，自扇冷鼠籠式船用三相異步電動機，廣泛用于船舶上作驅動之用如中小型機床、風機等機械的動力裝置。該系列電動機性能優良、節能省電、結構可靠、通用性強。
工作環境條件
海拔≤1000m
環境溫度： 0~+45℃
空氣相對濕度 ≤95%
傾斜: ±30°
搖擺: ±22.5°
有鹽霧、油霧、霉菌及海水的影響
有船舶和近海裝置正常營運和作業中產生的沖擊、振動的影響
外殼：鑄造鋁

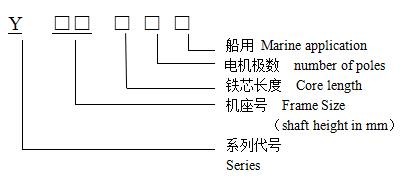

型號說明
軸承
|
機座號
|
極數
|
軸承規格
|
軸承尺寸內徑*外徑*寬度
|
|
50
|
2、4
|
6200-2RS
|
10*30*9
|
|
56
|
2、4
|
6200-2RS
|
10*30*9
|
|
63
|
2、4
|
6201-2RS
|
12*32*10
|
|
71
|
2、4、6
|
6202-2RS
|
15*35*11
|
|
80
|
2、4、6
|
6204-2RS
|
20*47*14
|
|
90
|
2、4、6
|
6205-2RS
|
25*52*15
|
|
100
|
2、4、6
|
6206-2RS
|
30*62*16
|
|
112
|
2、4、6
|
6206-2RS
|
30*62*16
|
|
132
|
2、4、6、8
|
6208-2RS
|
40*80*18
|
技術數據
|
型號
|
功率
|
電流
|
轉速r/min
|
效率
|
功率因數
|
起動電流/額定電流
|
起動轉矩/額定轉矩
|
zui大轉矩/額定轉矩
|
|
380V
50Hz
|
440V
60Hz
|
380V
50Hz
|
440V
60Hz
|
380V 50Hz
|
440V
60Hz
|
380V
50Hz
|
440V
60Hz
|
|
Y501-2-H
|
0.04
|
0.17
|
0.15
|
2800
|
3290
|
55
|
55
|
0.65
|
0.65
|
6
|
2.3
|
2.4
|
|
Y502-2-H
|
0.06
|
0.23
|
0.2
|
2800
|
3290
|
60
|
60
|
0.66
|
0.66
|
|
Y501-4-H
|
0.025
|
0.17
|
0.15
|
1400
|
1640
|
42
|
42
|
0.53
|
0.53
|
|
Y502-4-H
|
0.04
|
0.23
|
0.2
|
1400
|
1640
|
50
|
50
|
0.54
|
0.54
|
|
Y561-2-H
|
0.09
|
0.32
|
0.28
|
2800
|
3290
|
62
|
62
|
0.68
|
0.68
|
|
Y562-2-H
|
0.12
|
0.38
|
0.33
|
2800
|
3290
|
67
|
67
|
0.71
|
0.71
|
|
Y561-4-H
|
0.06
|
0.28
|
0.24
|
1400
|
1640
|
56
|
56
|
0.58
|
0.58
|
|
Y562-4-H
|
0.09
|
0.39
|
0.34
|
1400
|
1640
|
58
|
58
|
0.61
|
0.61
|
|
Y631-2-H
|
0.18
|
0.52
|
0.45
|
2800
|
3300
|
69
|
69
|
0.75
|
0.75
|
2.2
|
|
Y632-2-H
|
0.25
|
0.69
|
0.6
|
2800
|
3300
|
72
|
72
|
0.78
|
0.78
|
|
Y631-4-H
|
0.12
|
0.44
|
0.38
|
1400
|
1650
|
60
|
60
|
0.63
|
0.63
|
|
Y632-4-H
|
0.18
|
0.62
|
0.54
|
1400
|
1650
|
64
|
64
|
0.66
|
0.66
|
|
Y711-2-H
|
0.37
|
0.99
|
0.87
|
2800
|
3380
|
73.5
|
73.5
|
0.8
|
0.8
|
|
Y712-2-H
|
0.55
|
1.38
|
1.2
|
2800
|
3380
|
75.5
|
75.5
|
0.82
|
0.82
|
|
Y711-4-H
|
0.25
|
0.78
|
0.67
|
1400
|
1660
|
67
|
67
|
0.68
|
0.68
|
|
Y712-4-H
|
0.37
|
1.12
|
0.97
|
1400
|
1660
|
69.5
|
69.5
|
0.72
|
0.72
|
|
Y711-6-H
|
0.18
|
0.74
|
0.64
|
880
|
1090
|
56
|
56
|
0.66
|
0.66
|
4
|
1.9
|
2
|
|
Y712-6-H
|
0.25
|
0.95
|
0.82
|
880
|
1090
|
59
|
59
|
0.68
|
0.68
|
|
Y80M1-2-H
|
0.75
|
1.8
|
1.6
|
2820
|
3460
|
75
|
76.5
|
0.84
|
0.82
|
6.1
|
1.9
|
2.1
|
|
Y80M2-2-H
|
1.1
|
2.6
|
2.2
|
2820
|
3460
|
76.5
|
77.5
|
0.85
|
0.85
|
7
|
|
Y80M1-4-H
|
0.55
|
1.5
|
1.4
|
1390
|
1710
|
72.5
|
74
|
0.75
|
0.71
|
5.2
|
2
|
|
Y80M2-4-H
|
0.75
|
2.1
|
1.8
|
1390
|
1710
|
74
|
76
|
0.75
|
0.72
|
6
|
1.9
|
|
Y80M1-6-H
|
0.37
|
1.31
|
1.13
|
890
|
1110
|
63
|
63
|
0.7
|
0.7
|
4
|
|
Y80M2-6-H
|
0.55
|
1.7
|
1.47
|
890
|
1110
|
66
|
66
|
0.72
|
0.72
|
|
Y90S-2-H
|
1.5
|
3.5
|
3.1
|
2840
|
3470
|
79.5
|
80
|
0.82
|
0.85
|
7
|
|
Y90L-2-H
|
2.2
|
4.9
|
4.3
|
2840
|
3470
|
82.5
|
83.5
|
0.83
|
0.8
|
|
Y90S-4-H
|
1.1
|
2.7
|
2.4
|
1400
|
1710
|
78
|
79
|
0.78
|
0.75
|
6
|
|
Y90L-4-H
|
1.5
|
3.6
|
3.2
|
1400
|
1710
|
79
|
80.5
|
0.8
|
0.77
|
|
Y90S-6-H
|
0.75
|
2.2
|
2
|
910
|
1130
|
72.5
|
74
|
0.7
|
0.67
|
5.5
|
1.8
|
2
|
|
Y90L-6-H
|
1.1
|
3.2
|
2.9
|
910
|
1130
|
72.5
|
74
|
0.71
|
0.68
|
|
Y100L-2-H
|
3
|
6.2
|
5.4
|
2880
|
3490
|
84
|
84
|
0.87
|
0.86
|
7.5
|
1.9
|
2.1
|
|
Y100L1-4-H
|
2.2
|
5
|
4.5
|
1420
|
1730
|
81.5
|
82.5
|
0.81
|
0.78
|
7
|
|
Y100L2-4-H
|
3
|
6.8
|
5.9
|
1420
|
1730
|
83
|
85
|
0.81
|
0.78
|
|
Y100L-6-H
|
1.5
|
4
|
3.5
|
940
|
1150
|
77.5
|
79.5
|
0.73
|
0.7
|
5.5
|
1.8
|
2
|
|
Y112M-2-H
|
4
|
8.2
|
7.2
|
2890
|
3500
|
86.5
|
87
|
0.86
|
0.84
|
7.5
|
1.9
|
2.1
|
|
Y112M-4-H
|
4
|
8.9
|
7.7
|
1440
|
1750
|
84.5
|
86
|
0.81
|
0.79
|
7
|
|
Y112M-6-H
|
2.2
|
5.8
|
5.2
|
940
|
1150
|
79.5
|
82
|
0.72
|
0.68
|
6.5
|
1.8
|
2
|
|
Y132S1-2-H
|
5.5
|
11
|
9.6
|
2900
|
3520
|
86.5
|
86
|
0.88
|
0.87
|
7.5
|
1.5
|
|
Y132S2-2-H
|
7.5
|
14.6
|
12.9
|
2900
|
3520
|
87.5
|
87
|
0.89
|
0.88
|
|
Y132S-4-H
|
5.5
|
11.7
|
10
|
1440
|
1750
|
86
|
88
|
0.83
|
0.82
|
7
|
1.8
|
|
Y132M-4-H
|
7.5
|
15.4
|
13.2
|
1440
|
1750
|
87
|
88.5
|
0.85
|
0.84
|
|
Y132S-6-H
|
3
|
7.2
|
6.4
|
960
|
1170
|
83.5
|
83.5
|
0.76
|
0.74
|
6.5
|
1.8
|
|
Y132M1-6-H
|
4
|
9.5
|
8.2
|
960
|
1170
|
84
|
86
|
0.76
|
0.74
|
|
Y132M2-6-H
|
5.5
|
12.5
|
10.7
|
960
|
1170
|
86
|
87.5
|
0.78
|
0.77
|
|
Y132S-8-H
|
2.2
|
5.8
|
5.2
|
710
|
860
|
80
|
81
|
0.72
|
0.68
|
6
|
1.7
|
1.9
|
|
Y132M-8-H
|
3
|
7.6
|
6.8
|
710
|
860
|
82.5
|
83.5
|
0.73
|
0.69
|

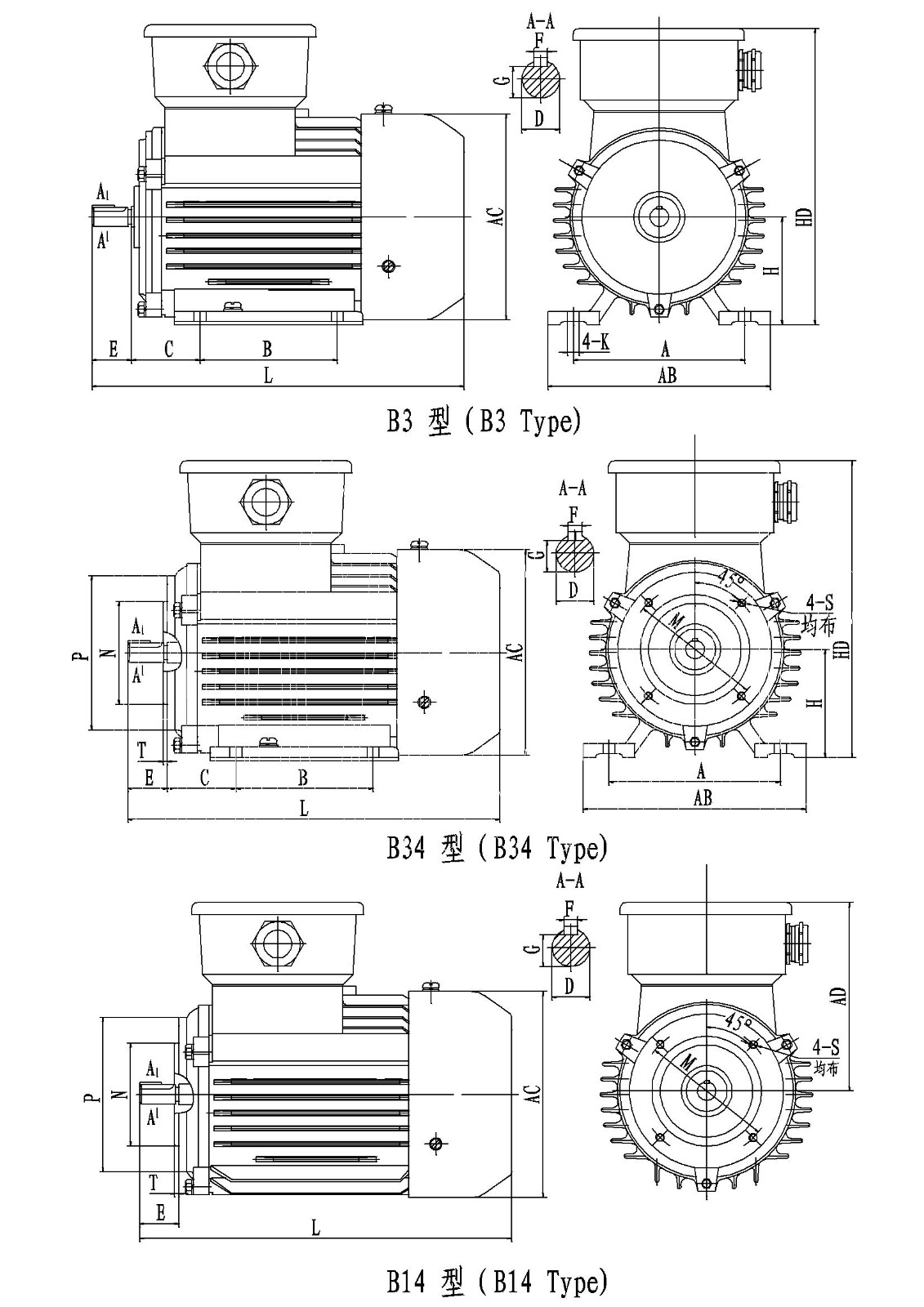

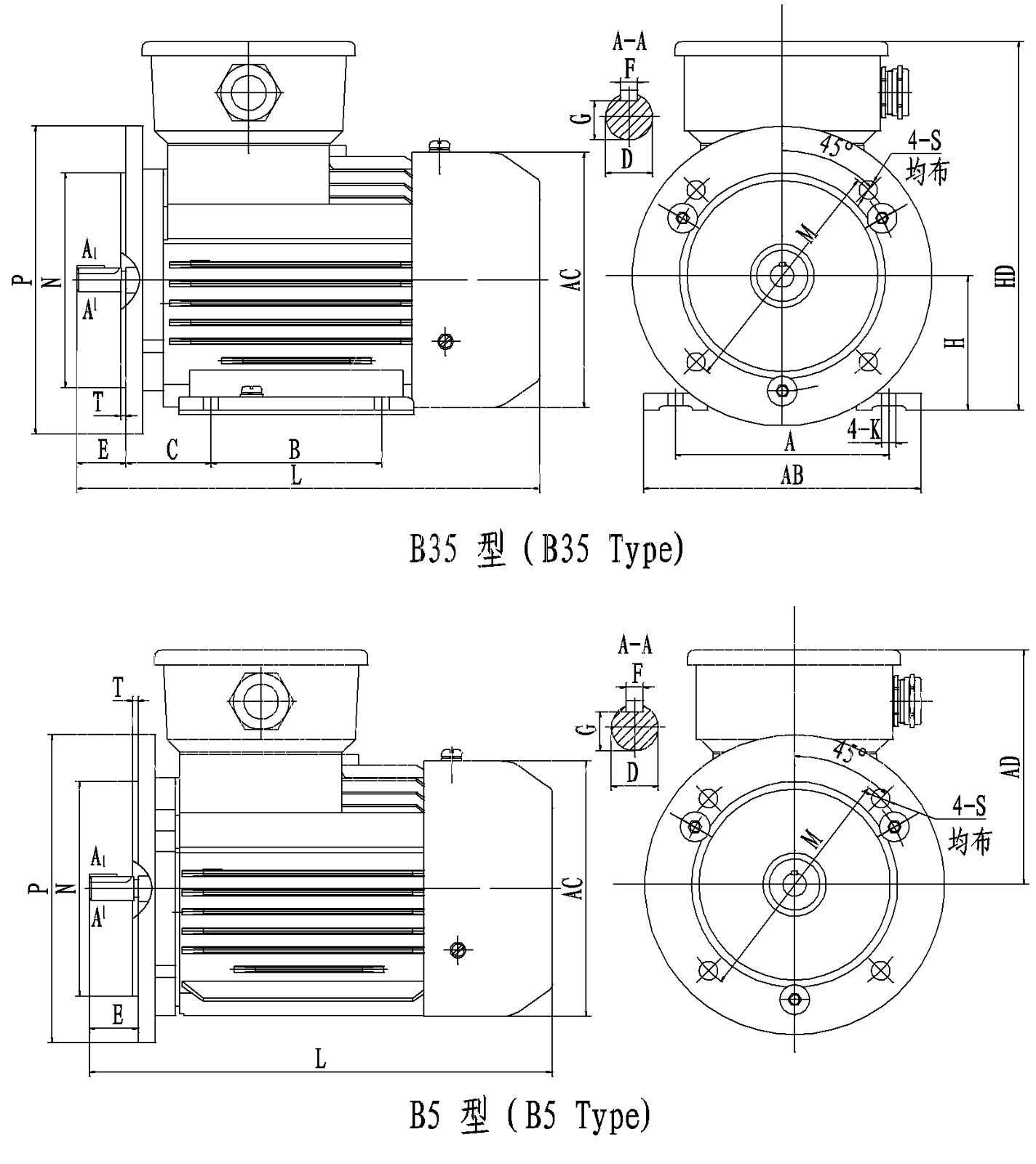

電動機安裝結構型式
B3型 — 機座有底腳、端蓋無凸緣 ；
B35型 — 機座有底腳、端蓋有大凸緣，安裝孔為通孔
B34型 — 機座有底腳、端蓋有小凸緣，安裝孔為絲孔；
B5型—機座無底腳、端蓋有大凸緣，安裝孔為通孔.
|
機座號
|
外形及安裝尺寸
|
|
B3、B34
|
B14、B34
|
B3、B34
|
B14
|
L
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
S
|
T
|
AB
|
AC
|
HD
|
AD
|
|
50
|
80
|
63
|
32
|
9
|
20
|
3
|
7.2
|
50
|
6
|
55
|
40
|
70
|
M5
|
2.5
|
100
|
110
|
125
|
100
|
175
|
|
56
|
90
|
71
|
36
|
9
|
20
|
3
|
7.2
|
56
|
6
|
65
|
50
|
80
|
115
|
120
|
135
|
110
|
190
|
|
63
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
75
|
60
|
90
|
130
|
130
|
165
|
125
|
250
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
85
|
70
|
105
|
M6
|
145
|
145
|
180
|
140
|
275
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
16
|
80
|
10
|
100
|
80
|
120
|
3
|
160
|
165
|
200
|
150
|
300
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
115
|
95
|
140
|
M8
|
180
|
185
|
240
|
160
|
335
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
90
|
115
|
95
|
140
|
180
|
185
|
240
|
160
|
365
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
130
|
110
|
160
|
3.5
|
205
|
215
|
290
|
185
|
385
|
|
112M
|
190
|
70
|
112
|
130
|
110
|
160
|
245
|
240
|
320
|
195
|
405
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
132
|
165
|
130
|
200
|
M10
|
280
|
275
|
365
|
245
|
500
|
|
132M
|
178
|
165
|
130
|
200
|
540
|
|
機座號
|
外形及安裝尺寸
|
|
B35
|
B35、B5
|
B35
|
B5
|
L
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
S
|
T
|
AB
|
AC
|
HD
|
AD
|
|
63
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
115
|
95
|
140
|
10
|
3
|
130
|
130
|
165
|
125
|
250
|
|
71
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
130
|
110
|
160
|
4
|
145
|
145
|
180
|
140
|
275
|
|
80
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
12
|
160
|
165
|
200
|
150
|
300
|
|
90S
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
165
|
130
|
200
|
180
|
185
|
240
|
160
|
335
|
|
90L
|
140
|
125
|
56
|
24
|
50
|
20
|
90
|
165
|
130
|
200
|
180
|
185
|
240
|
160
|
365
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
215
|
180
|
250
|
15
|
4
|
205
|
215
|
290
|
185
|
385
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
320
|
195
|
405
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
132
|
265
|
230
|
300
|
280
|
275
|
365
|
245
|
500
|
|
132M
|
178
|
540
|
注：本產品樣本中，所有產品數據參數僅供參考，如有疑問請與工廠聯系，并以定貨時提供給用戶的確認資料為準。
Y-H系列船用三相異步電動機
